HDPE

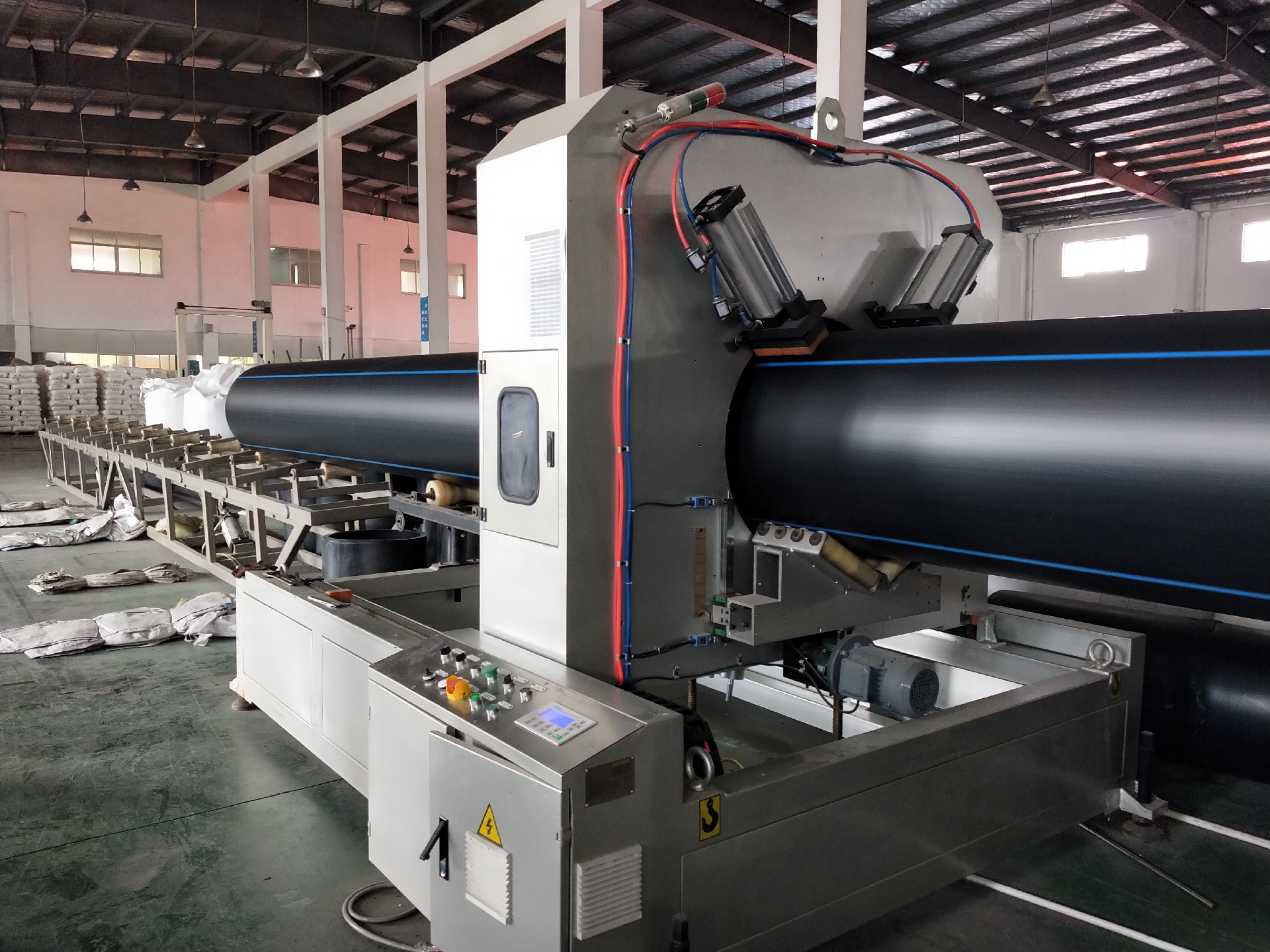

The extruder is a KFY series single screw extruder with high efficiency and large output. The special screw barrel structure design can ensure the ideal melt uniformity at low melt temperatures. The spiral distribution structure die specially designed for large-diameter pipe extrusion is equipped with an in-mold pumping pipe internal cooling system, and a special low-melt PE100 raw material to produce ultra-thick-walled and extra-large-diameter solid-wall pipes.
Product Details
Model 主机型号 | Diameter(mm) 管材规格 | Extruder 配套节能挤出机 | Capacity(kg/h) 实际最大挤出量 | Power(kw) 总装机功率 |
| KFY-PE-75 | Ø20-Ø75 | 60×40 Extruder | 360 | 150 |
| KFY-PE-250 | Ø50-Ø250 | 75×38 Extruder | 600 | 230 |
| KFY-PE-450 | Ø160-Ø450 | 90×38 Extruder | 900 | 450 |
| KFY-PE-630 | Ø315-Ø630 | 120×38 Extruder | 1300 | 630 |
| KFY-PE-800 | Ø450-Ø800 | 120×38 Extruder | 1200 | 680 |
| KFY-PE-1000 | Ø500-Ø1000 | 120×38 Extruder | 1400 | 815 |
| KFY-PE-1200 | Ø710-Ø1200 | 120×38 Extruder | 1400 | 930 |
| KFY-PE-1600 | Ø900-Ø1600 | 150×38 Extruder | 1900 | 1200 |
Note:The specifications are subject to change without prior notice. 备注：以上规格参数如有变更，恕不另行通知。 | ||||
