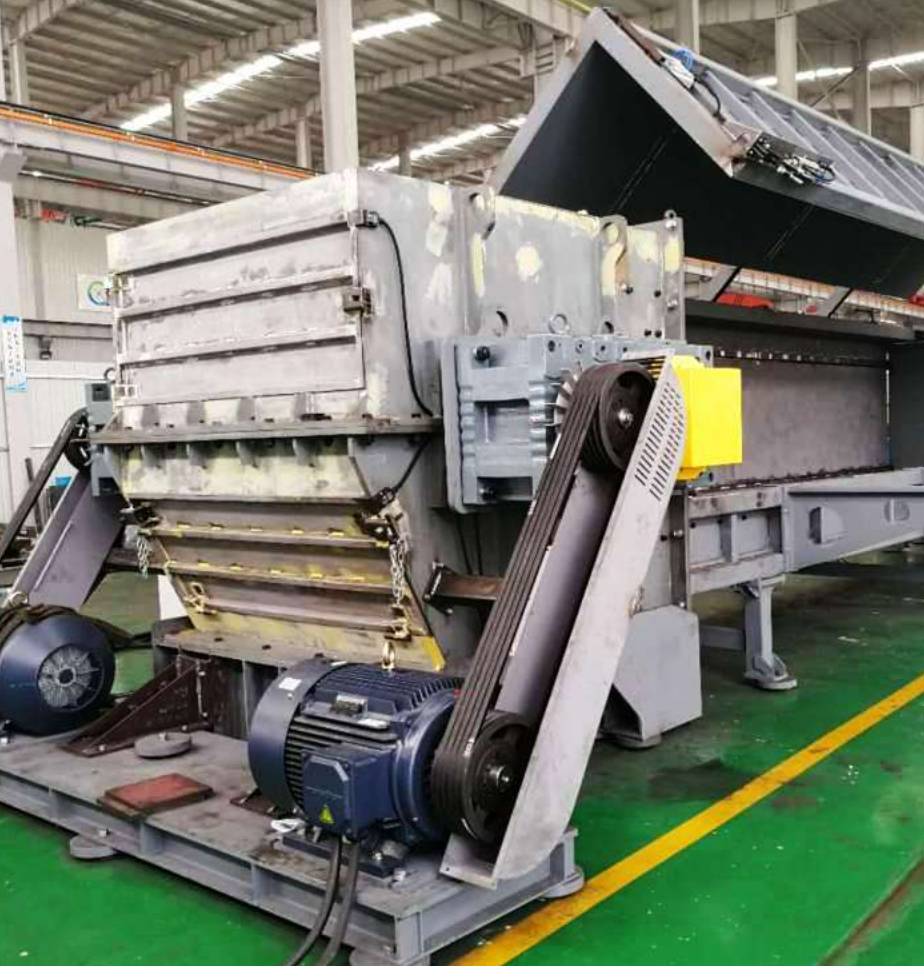

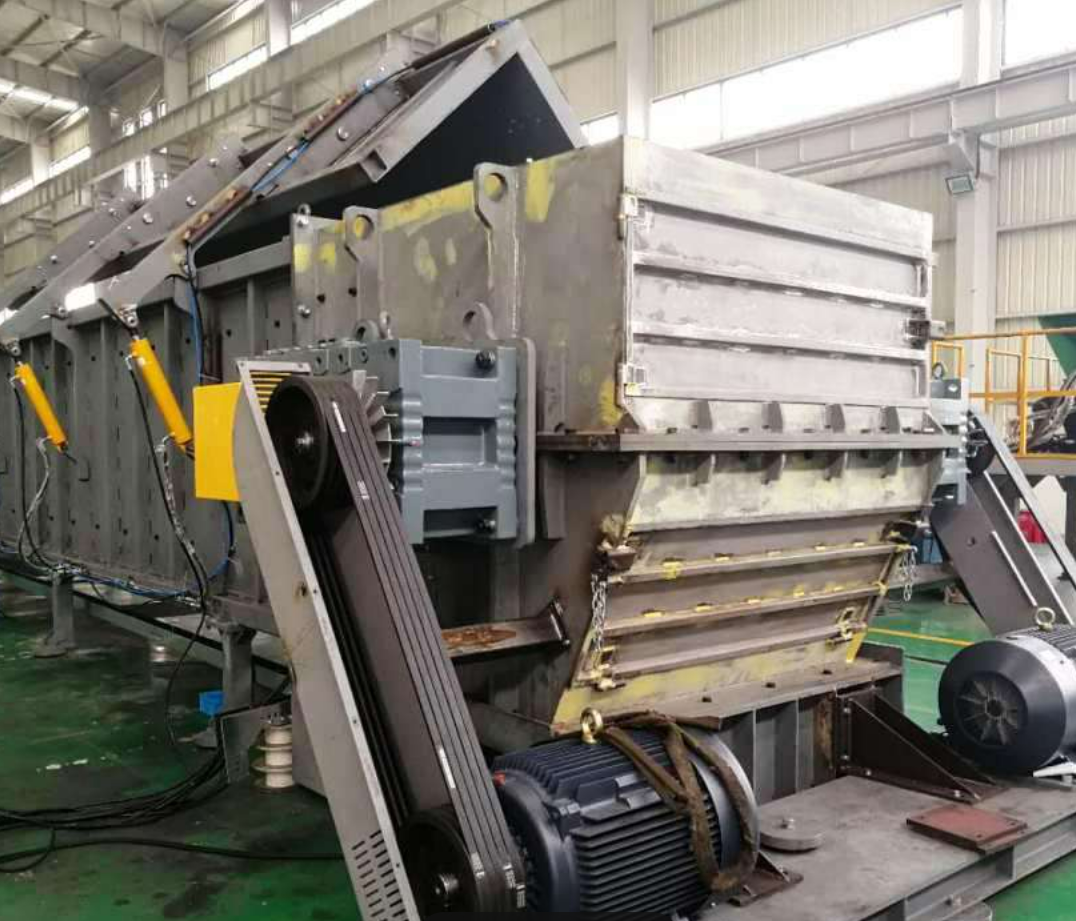

Large shredder

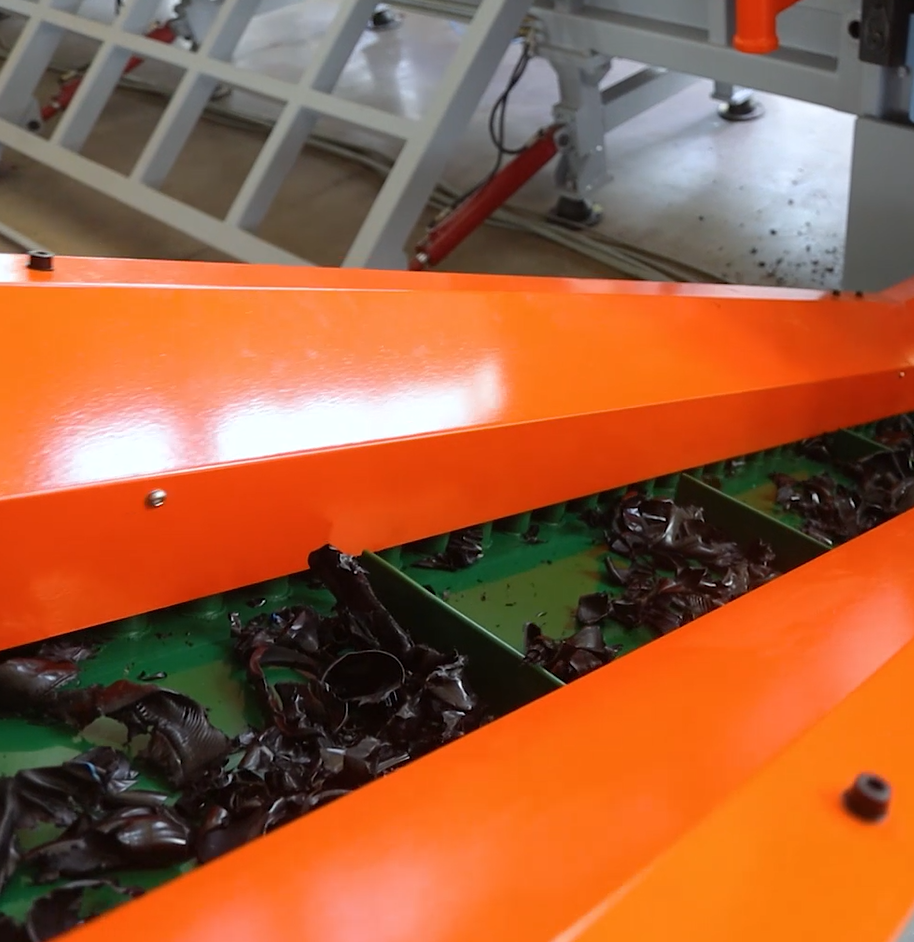

KOFIYA series shredding unit can be used for PE, PP, PVC pipe shredding with a diameter of 1600MM, the pipe with a length of 3-6M is directly crushed without division, its speed is slow and stable, all kinds of pipes are put into the horizontal feeding trough, the feeding trough automatically closes by hydraulic propulsion to push the pipe to the center of the shaft for crushing. The shredded material is brought into the crusher by a conveyor for secondary crushing to complete the required diameter of crushed particles. The main advantage of KOFIYA series shredding system is to save a lot of division labor and saw edge waste, energy saving, safety and efficiency, the whole system is controlled by PLC central control system.
Product Details
| Model | Rotor Dia. | Drive power | Shreddable Pipe Dia. Max. | Output(kg/h) |
| KFY-630 | Φ848 | 2×30 | 630 | 800-1000 |
| KFY-1000 | Φ1258 | 2×45 | 1000 | 1200-1500 |
| KFY-1200 | Φ1478 | 2×55 | 1200 | 1500-2000 |
| KFY-1600 | Φ1968 | 2×110 | 1600 | 1800-2500 |
| Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements. | ||||
